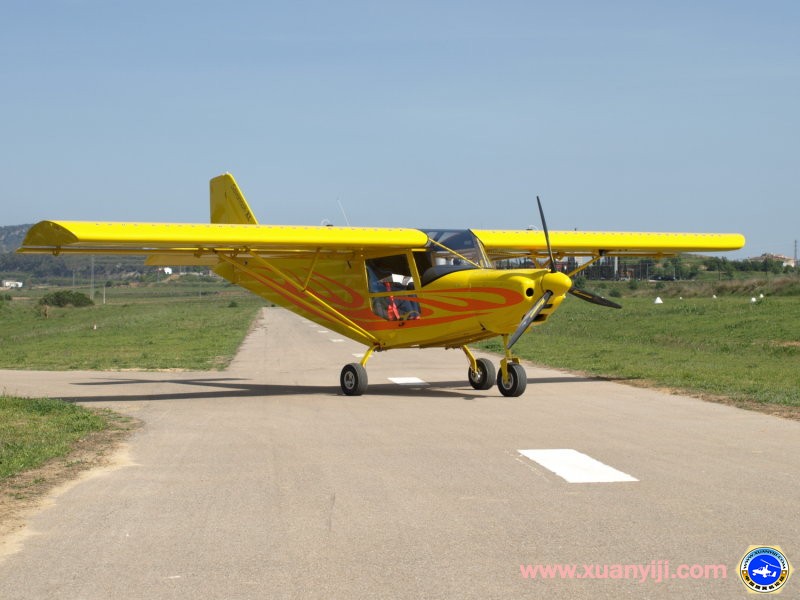

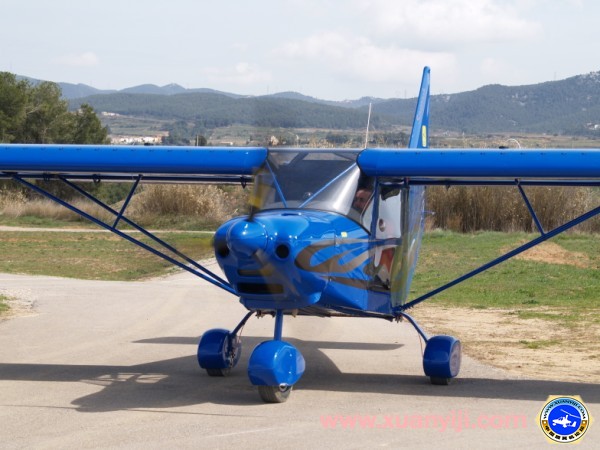

Savannah XL
True STOL concept: land and take off from very short fields.
The Savannah XL ™ is an evolution of Savannah VG , with two objectives: to enjoy the pleasure of flying and winning performance.
Thanks to the generous size of the new car (13cms wide), panoramic windows offer excellent visibility and the doors and roof that are completely transparent thus get an excellent interior lighting.
In the wing slats have been removed and is equipped with vortex generators, which have the advantage that only work at high angles of attack, without penalizing the cruising speed.
With a streamlined, sweet and sharp, ending in a cone of 260 mm in diameter, this ultralight has a cruising speed of 180 km / h, with maximum comfort.
To gain speed, has redesigned the hood and windshield, more inclined to reduce the resistance.
The instrument panel is very well suited to hold all types of instrumentation.
Hydraulic disc brakes are independent and operate on the wheels of main landing gear.
The engine cover is completely removable for easy motor control. On the upper deck a record is inserted that allows for easy inspection of oil level.
You may purchase Kit format with very detailed installation manual which facilitates its construction.
You can choose between two engines:
-
80HP Rotax 912 UL Duc bladed propeller with ground adjustable pitch
- 100HP Rotax 912 ULS Duc bladed propeller with ground adjustable pitch
FEATURES BENEFITS ROTAX 912 ULS
Wing span
9.00 m
Flaps stall speed
57 Km / h
String
1.287 m
Speed loss with flaps
49 Km / h
Wing area
12.87 m²
Cruising speed 75%
177 Km / h
Maximum wing loading
60 Kg
Maximum speed
198 Km / h
Maximum takeoff weight
450 Kg
VNE
230 Km / h
Maximum weight project
560 Kg
Distance off
55 m
Empty weight
286 Kg
Landing distance
70 m
Track
1.43 m
Ascent (90km / h)
1200 ft / min
Cabin Width
1.18 m
Glide ratio
1 / 11
Length
6.60 m
Maximum operating altitude
4000 m
Height
2.58 m
Load Factor
G +6 / -3 G
Brakes
Disk
Control flaps
Electric / manual
Boot capacity
20 Kg
Fuel capacity
2×36 Litres(+6 Reserve)
