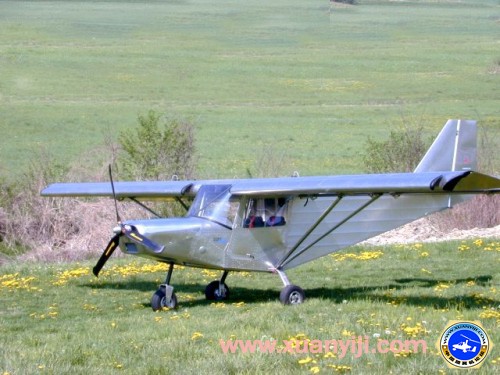

Bingo HKS
The Bingo is a simple plane. His secrets are the lightness and simplicity, without sacrificing safety, making it ideal in a plane for new pilots. A noble and robust aircraft with an affordable cost for any fan of the ultralight.
The Bingo was born thinking of those who want to fly a real STOL. With a flying weight of only 242Kg and double high wing leading edge, allowing you to develop a full and safe flight.
HKS 700E engine equipped with 60HP 4 stroke, has a cruising speed of 120km / h to enjoy quiet and pleasant voyages, taking safety thanks to its characteristics, landing and take off on short runways.
Also available in VG, where the slats are replaced by vortex generators winning without losing performance STOL performance.
The two large side doors allow easy access to the cockpit independent and has great visibility through the window (lexan) in the bottom of the door.
The trunk is located behind the seats and accessible during flight, can contain up to 20 kilograms.
It has a dynamic air intake designed to extract air from the cabin that is installed on the bottom of the luggage compartment and two rotating vents in the windows.
The engine cover is completely removable to allow easy inspection of the engine.
You may purchase Kit format with very detailed installation manual which facilitates its construction.
FEATURES BENEFITS 60HP HKS 700E
Wing span
9.00 m
Speed loss
45 Km / h
String
1.43 m
Cruising speed 75%
120 Km / h
Wing area
12.84 m²
Maximum speed
140 Km / h
Maximum wing loading
60 Kg
VNE
180 Km / h
Maximum takeoff weight
450 Kg
Distance off
80 m
Empty weight
255 Kg
Landing distance
40 m
Track
1.43 m
Climb (80 km / h)
500 ft / min
Cabin Width
1.00 m
Maximum operating altitude
2500 m
Length
6.10 m
Load Factor
G +6 / -3 G
Height
2.45 m
Control flaps
Manual
Brakes
Drum
Boot capacity
20 Kg
Fuel capacity
2×36 Litres(+6 Reserve)
