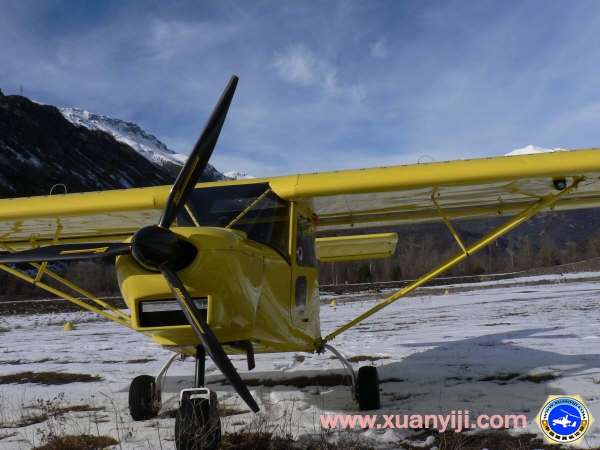

Savannah VG
Savannah is synonymous with safety, reliability and fun. This is the secret of their success.
Its STOL performance and ease of use make it a plane that allows you to travel with excellent comfort and enjoy the pleasure of flying with the utmost ease.
The Savannah VG (Vortex Generator) was born from an aircraft having STOL qualities, equivalent to Savannah model, but with substantially increased cruising speed and maximum speed.
The purpose of the small vortex generators used in the leading edge is to keep the boundary layer attached to the platform with high angle of attack. The result is a decrease in the rate of loss due to a greater angle of the wings .
The Savannah VG is the ideal medium for those who want to combine STOL flight safety with the possibility of long trips with cruise speeds above 170 km / h.
You may purchase Kit format with very detailed installation manual which facilitates its construction.
Available with 2 Engine:
Rotax 912 UL ♦ 80HP Duc bladed propeller with ground adjustable pitch
♦ 100HP Rotax 912 ULS Duc bladed propeller with ground adjustable pitch
FEATURES ROTAX 912 BENEFITS UL 80HP
Wing span9.00 mFlaps stall speed59 Km / hString1.43 mSpeed loss with flaps55 km / hWing area12.87 m²Cruising speed 75%158 Km / h Maximum wing loading60 KgMaximum speed170 Km / hMaximum takeoff weight450 KgVNE200 Km / hMaximum weight project560 KgDistance off 65 mEmpty weight282 KgLanding distance70 mTrack1.43 mAscent (90km / h)900 ft / minCabin Width1.05 mGlide ratio1 / 11Length6.25 mMaximum operating altitude3000 mHeight2.58 mLoad FactorG +6 / -3 GBrakes Disk Control flapsElectric / manualBoot capacity20 KgFuel capacity2x36 Litres(+6 Reserve)
